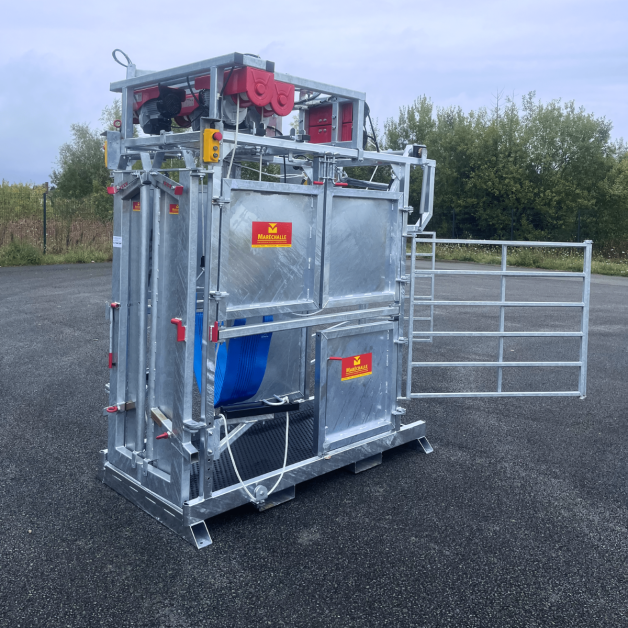

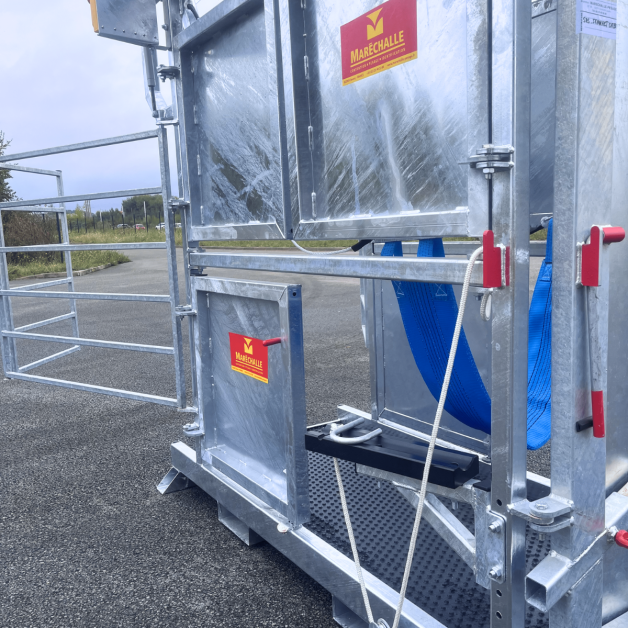

Trimming Cage Maréchalle PM4600

Characteristics of the PM4600 Trimming Cage

• Gross weight: 620 kg
• Internal dimensions:
  • Length: 190 cm
  • Width: 82 cm
  • Height: 180 cm
• Full electric motorization
• Connection: 220 V
• Structure: galvanized steel
• Floor fixings provided
• Use: intensive and professional bovine trimming

Oversized motorization and lifting power

The PM4600 is equipped with oversized 1300 W motors per motor, with a declared lifting capacity of up to 500 kg.

Motor configuration:

• 2 motors to lift the front legs (one on each side)
• 2 motors for the belly strap
• 1 motor to lift the rear legs
• 1 motor to operate the pendulum anti-reverse

This configuration allows for complete, progressive, and powerful immobilization of the animal, with minimal effort for the operator.

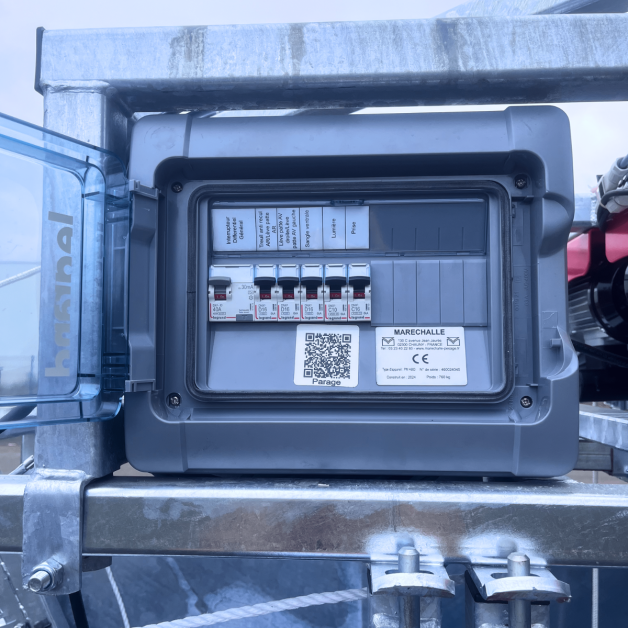

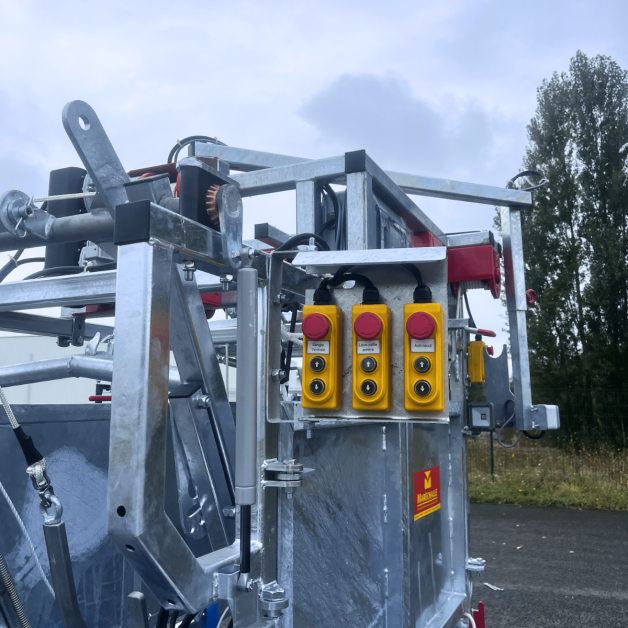

Ergonomic electrical controls

The electrical controls are positioned near each workstation, allowing immediate control of movements without moving around the cage.

The cage is also equipped with:

• Integrated electrical outlets
• Spotlight to improve visibility during work

Self-locking front door PM85

The PM4600 integrates a self-locking front door type PM85, adjustable at the neck, ensuring quick and effective restraint.

Reinforced guides and supports

Teflon front leg guides

Wide and curved guides ensuring stable and smooth support during motorized lifting.

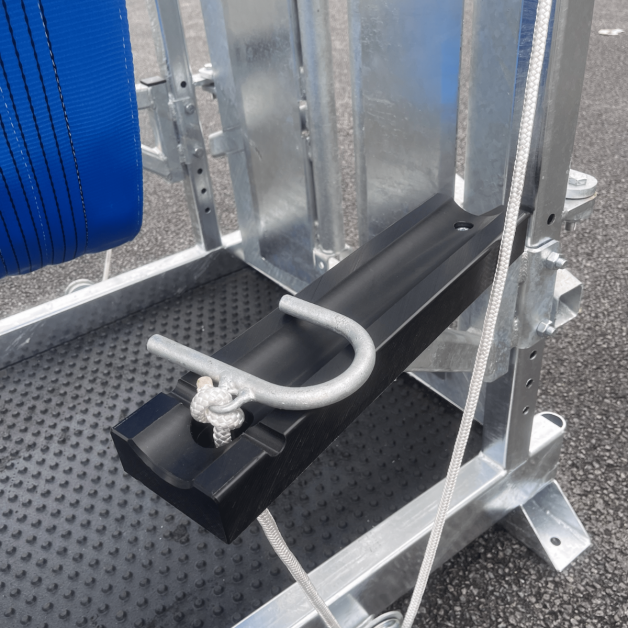

Rear leg supports

Secure hold on the anti-reverse for precise immobilization.

Aluminum hook

Allows additional lifting of the rear limbs if necessary.

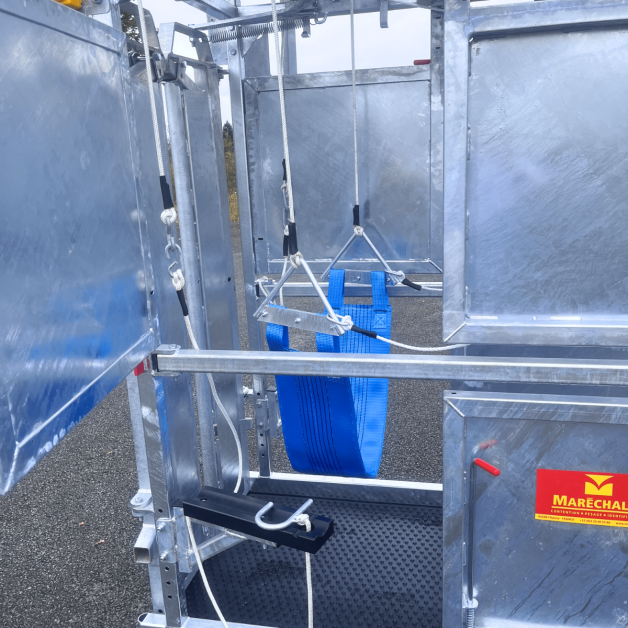

Motorized belly strap

The PM4600 has 2 motors dedicated to the belly strap, allowing progressive and secure support of the bovine during trimming.

This motorization improves:

• The stability of the animal
• The safety of the operator
• Comfort during long interventions

Motorized pendulum anti-reverse

The anti-reverse system is electrically operated, ensuring progressive and controlled tightening, without jerks.

Adaptability and practicality

• Integrated fork passage
• Cage adaptable for horned animals with PM97 door
• Possibility to lift both legs simultaneously
• Product galvanized only for maximum durability

Animal comfort

The PM4600 is designed to limit stress during handling:

• Progressive immobilization
• Soundproof and non-slip rubber mat
• Quick handling reducing intervention time

A quickly stabilized animal allows for more precise and secure work.

User benefits

The PM4600 is designed for professionals seeking performance and profitability:

• Maximum reduction of hardship
• Significant time savings
• Total and secure immobilization
• Work possible alone
• Better techno-economic results

This model is particularly suitable for large-scale farms or trimming service providers.

A premium solution for professional trimming

The Maréchalle Pesage PM4600 is a complete, powerful, and durable tool, intended for demanding users wishing to invest in high-performance and reliable equipment in the long term.
