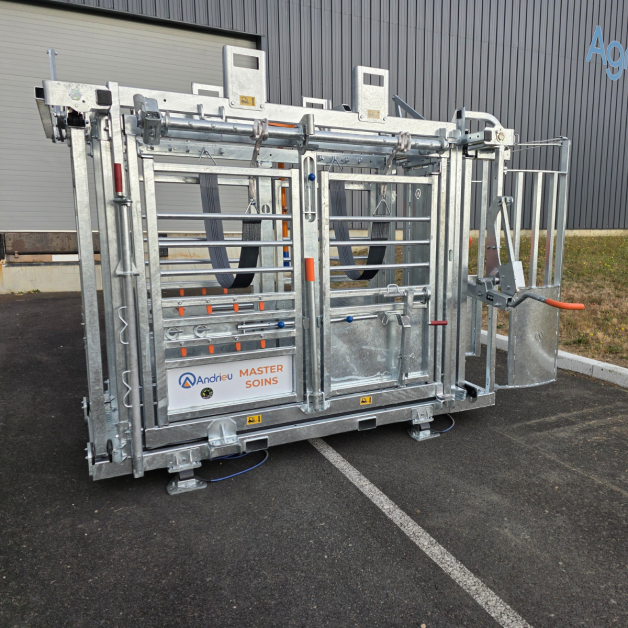

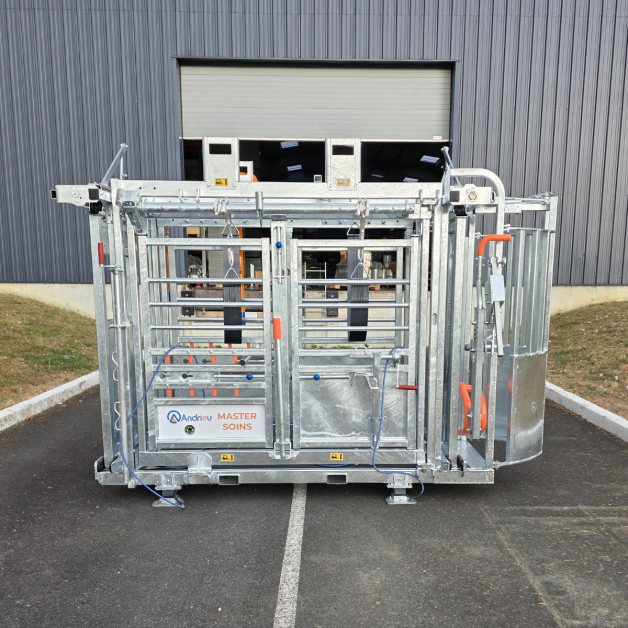

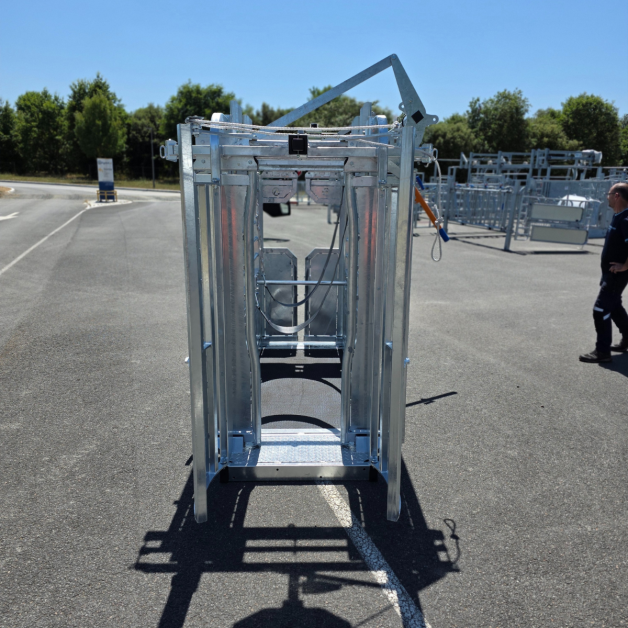

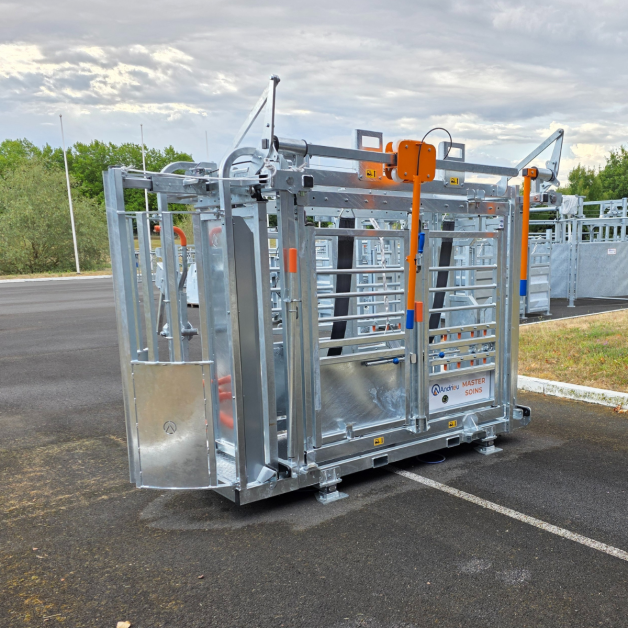

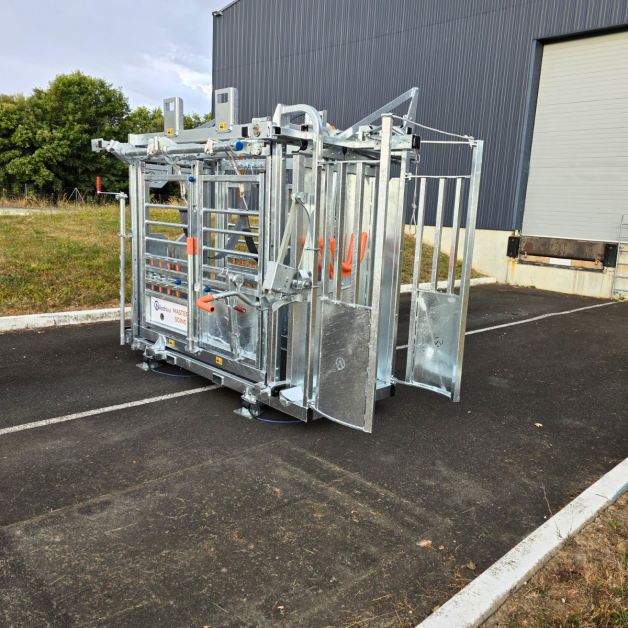

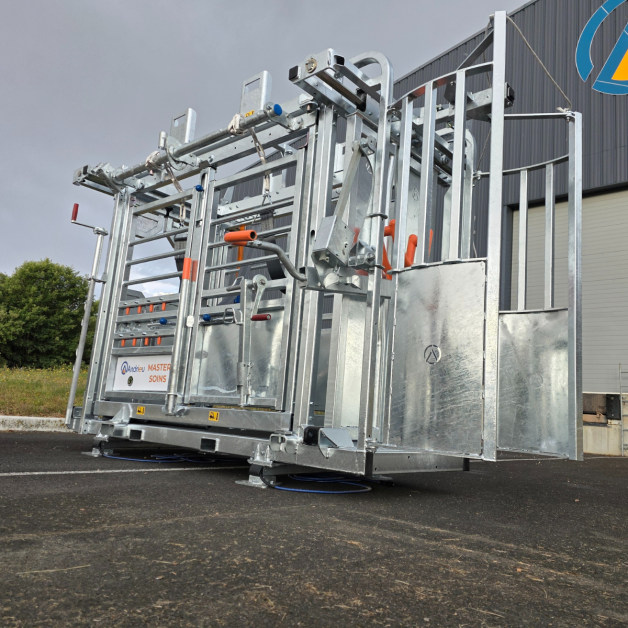

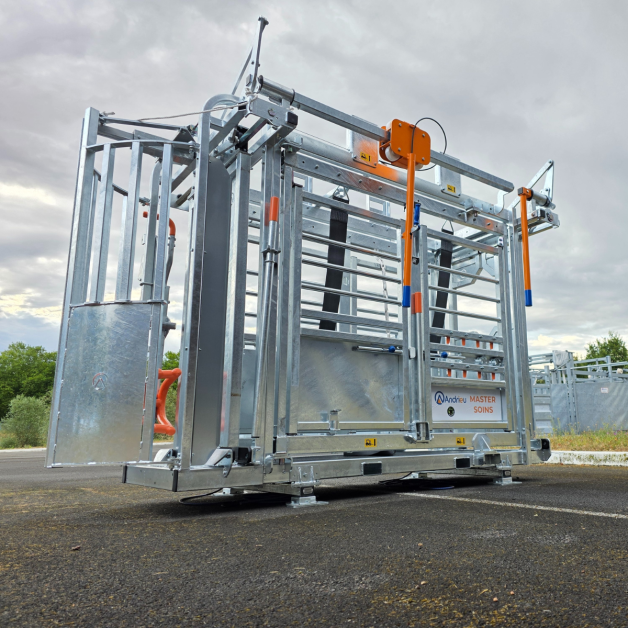

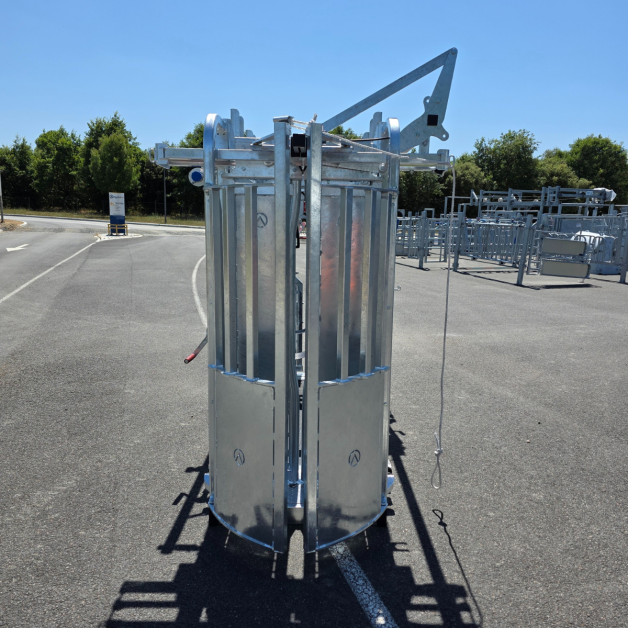

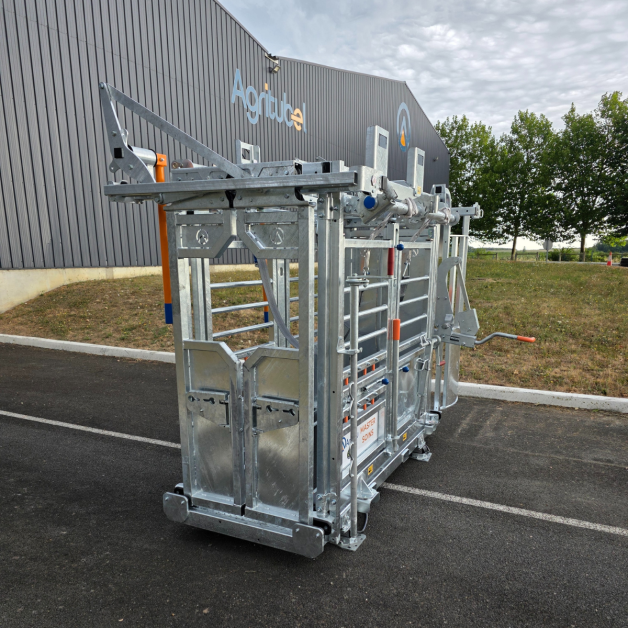

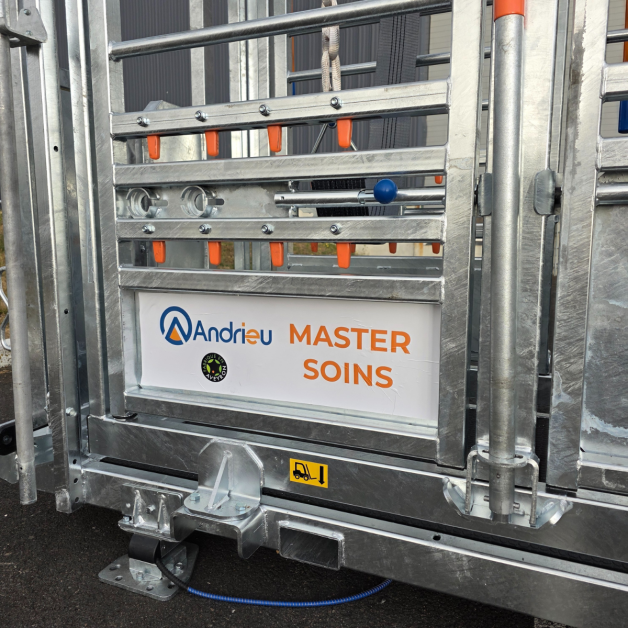

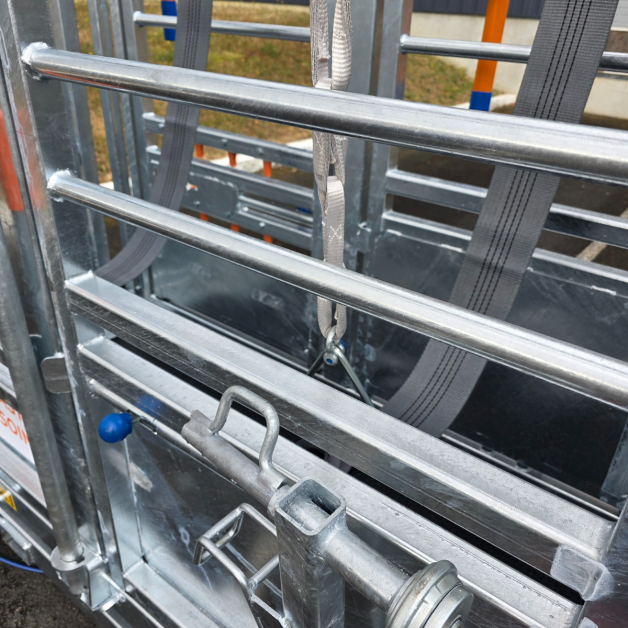

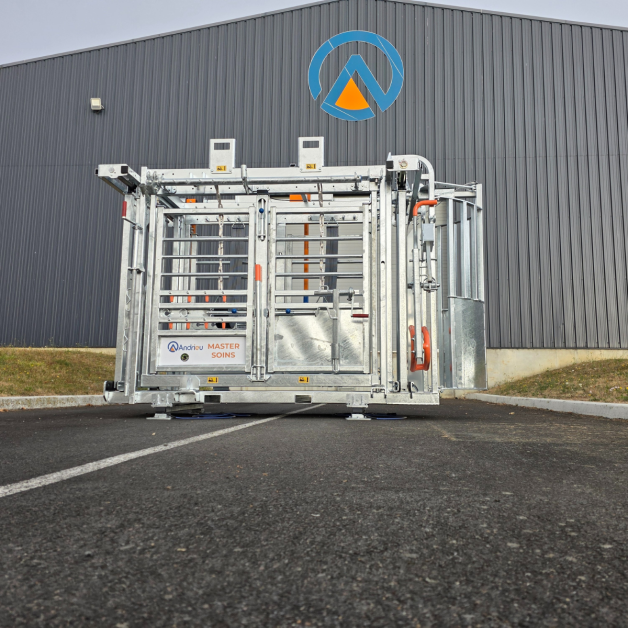

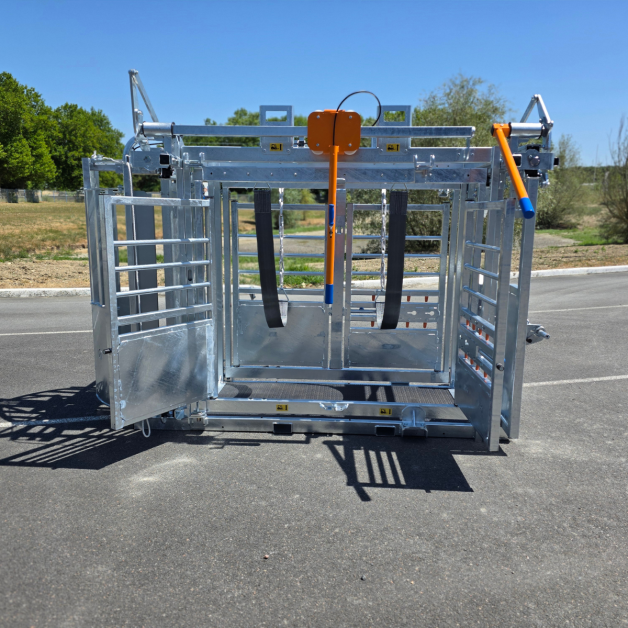

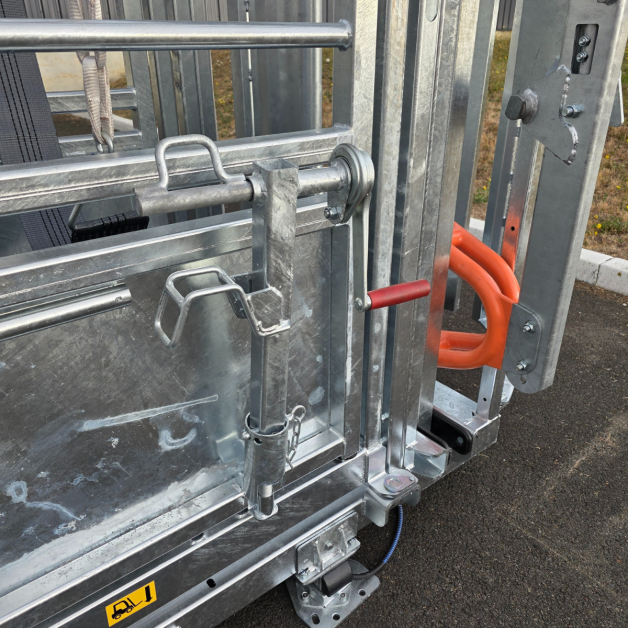

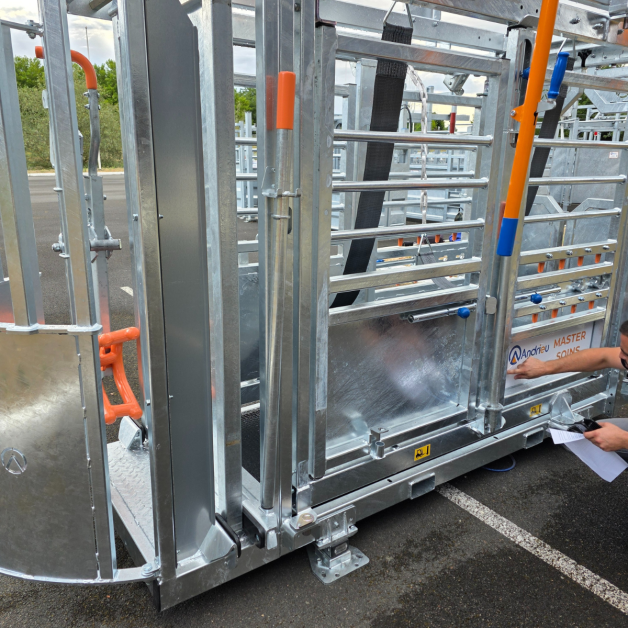

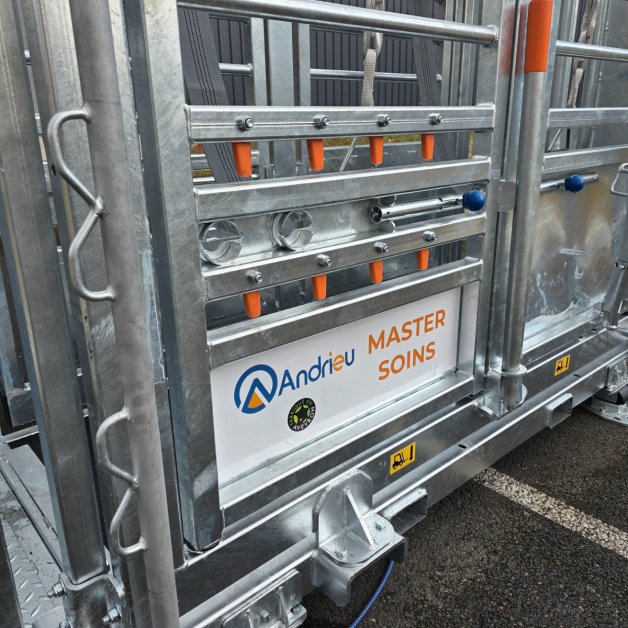

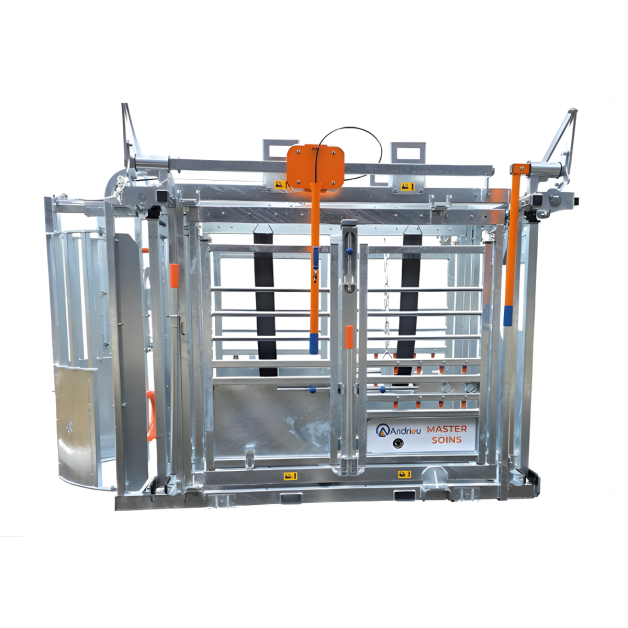

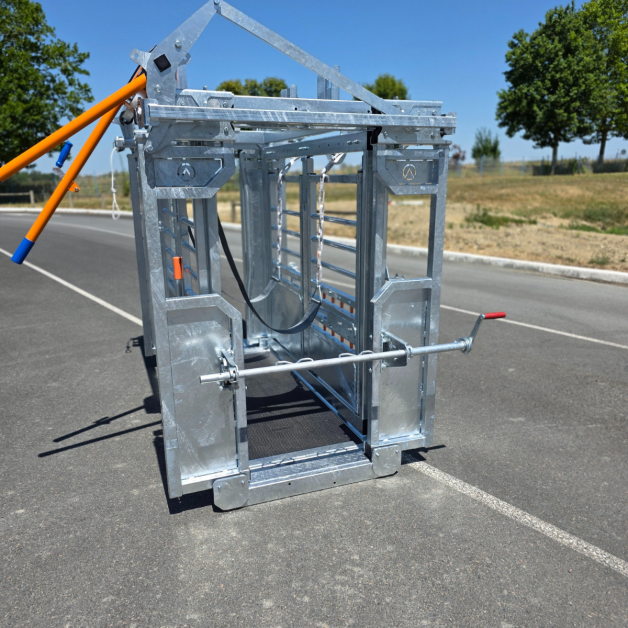

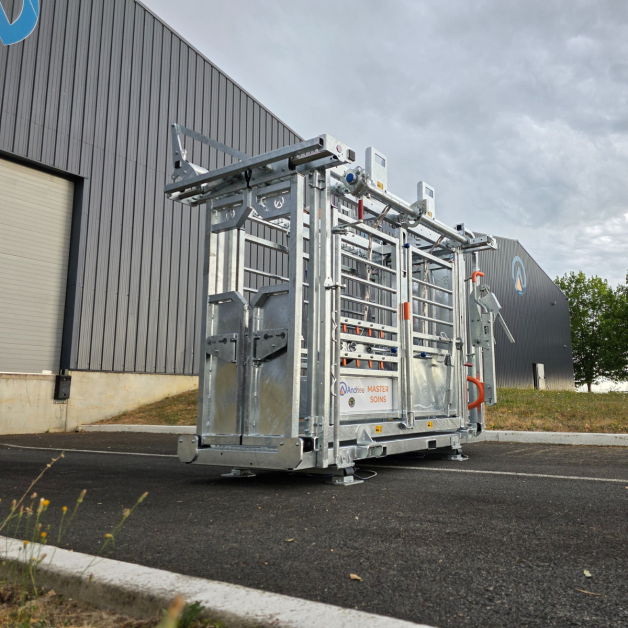

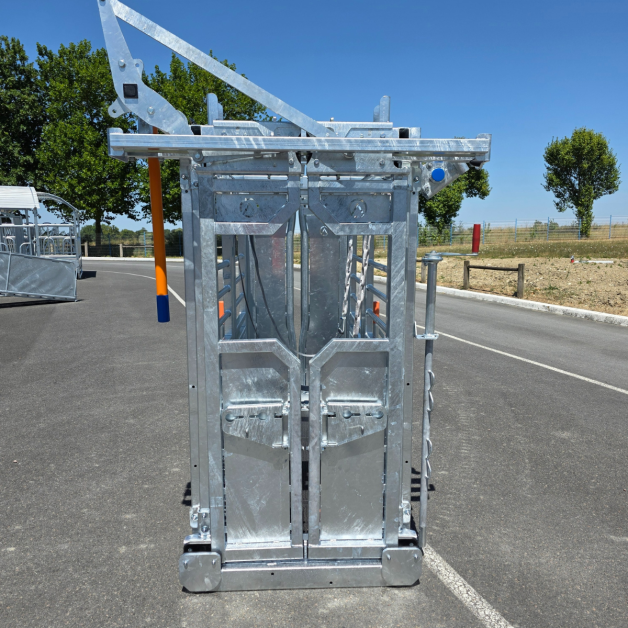

Andrieu MASTER SOINS restraint cage Trimming, insemination, and technical care on cattle

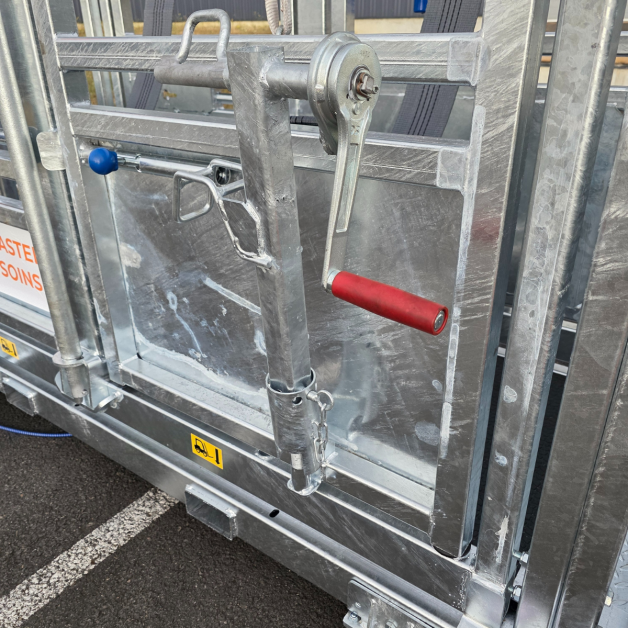

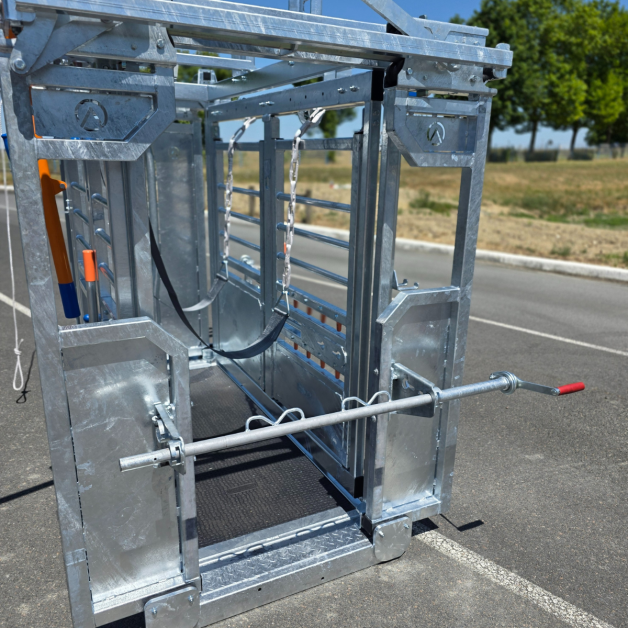

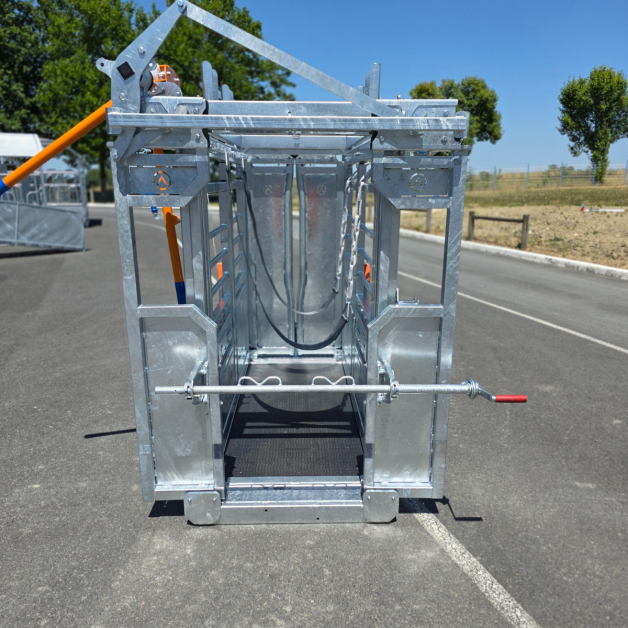

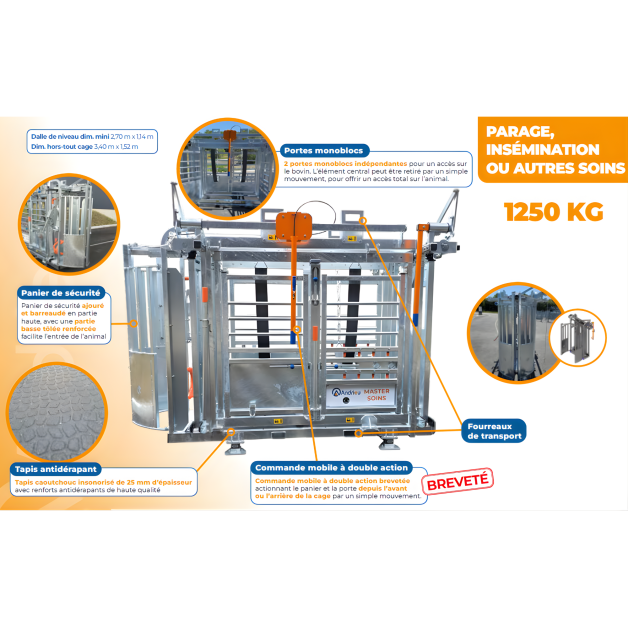

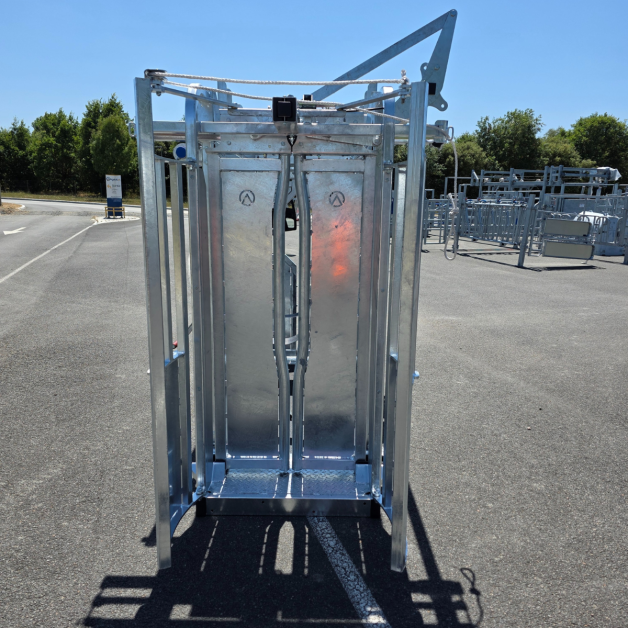

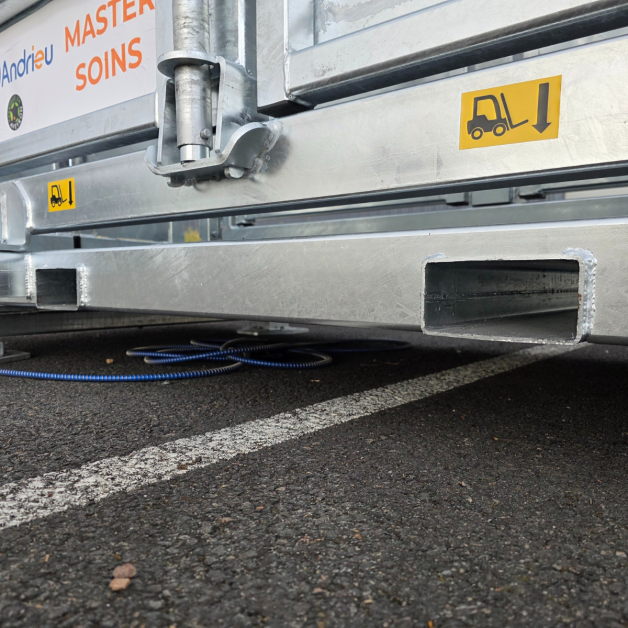

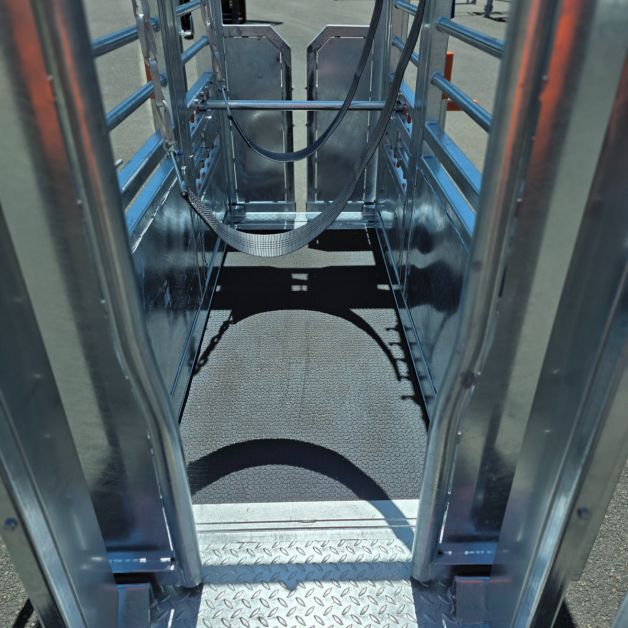

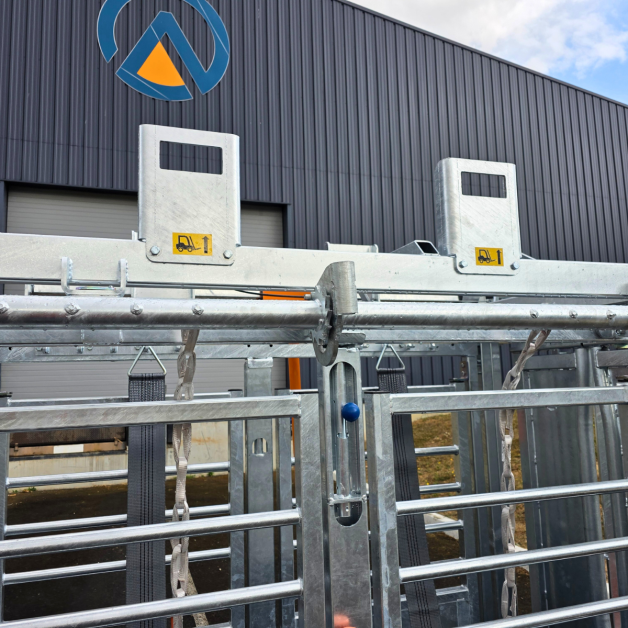

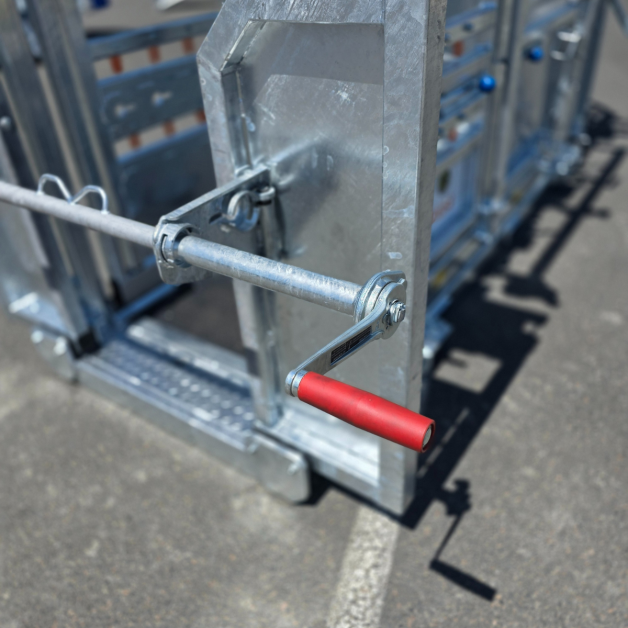

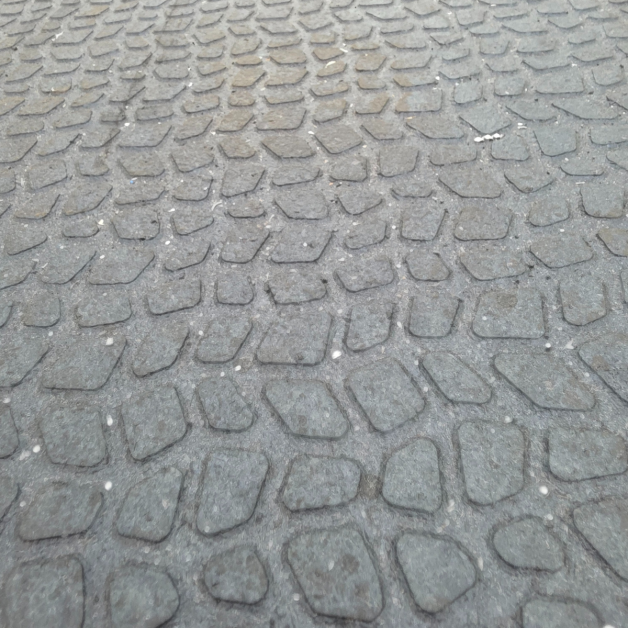

With a **weight of 1250 kg**, this cage is clearly aimed at **demanding professionals** seeking reliable, durable equipment designed to withstand repeated use. ### Features - **Cage weight**: 1250 kg - **Width**: fixed (non-adjustable) - **Overall dimensions**: 3.40 m x 1.52 m - **Recommended minimum leveling slab**: 2.70 m x 1.14 m - **Structure**: galvanized steel - **Operation**: heavy, stable, and silent cage - **Use**: trimming, insemination, veterinary care, technical interventions **Standard Equipment** - Rear insemination door with side opening - Reinforced safety basket (open upper part, sheeted lower part) - Two independent monobloc doors with removable central element - Adjustable anti-backup at 2 levels and 5 positions - Non-slip soundproof rubber mat – 25 mm thick - Patented double-action mobile control (front or rear) - Front trimming winch (2 positions, anti-return system) - Rear trimming winch (4 positions, anti-return system) - Two wide 120 mm belly straps (tensile strength up to 2 tons) - Integrated transport sleeves **Available Options** - Galvanized manual head lift with chin rest and soft-touch handle - Weighing bars kit for integration of a weighing system ### A Cage Designed for Intense Technical Work The MASTER SOINS was developed to offer a **secure workstation**, allowing for prolonged intervention on the animal without losing stability. The fixed width of the cage contributes to: - Better distribution of support, - A more natural posture for the cattle, - A reduction in unnecessary movements. This design promotes calmer, more precise, and safer interventions. ### Full Access to the Animal Thanks to Monobloc Doors The **independent monobloc doors** allow direct and unobstructed access to the cattle. The removable central element can be quickly taken out, completely freeing the working area. This system is particularly suitable for: - Localized care, - Long manipulations, - Trimming requiring maximum visibility and precision. ### Insemination Door: Enhanced Operator Safety The **rear insemination door with side opening** allows intervention **with closed doors**, significantly increasing the safety of the handler or veterinarian. This device is designed to: - Limit the risk of kicks, - Keep the animal in a stable position, - Ensure a more serene working environment. ### Integrated Front and Rear Trimming Winches **Front Trimming Winch** - 2 positions - Anti-return system - Integrated storage in the cage Allows for gradual and secure immobilization of the front limbs. **Rear Trimming Winch** - 4 positions - Anti-return system - Suitable for all types of cattle Ideal for trimming operations and care requiring precise immobilization of the rear limbs. ### Multi-position Anti-backup The **adjustable anti-backup system with 2 levels and 5 positions** allows for adapting the restraint to the size of the animal while preventing sudden backward movements during care. ### Animal Comfort and Stress Reduction **Non-slip Soundproof Rubber Mat** - 25 mm thickness - High-quality non-slip reinforcements The mat improves grip, reduces noise, and promotes calmer behavior during interventions. **High Resistance Belly Straps** The **two 120 mm belly straps** ensure effective support from underneath the cattle. Their wide width allows for comfortable and non-traumatizing immobilization, even during prolonged interventions. ### Patented Double-action Mobile Control The mobile control allows for operating the safety basket and doors from **the front or rear of the cage**, with a simple movement. This system improves: - Work ergonomics, - Speed of intervention, - Overall safety around the animal. ### Specific Options for the MASTER SOINS **Galvanized Manual Head Lift** The head lift is equipped with a chin rest and a soft-touch handle, allowing precise immobilization of the head, without stress for the animal and with increased safety for the operator.
