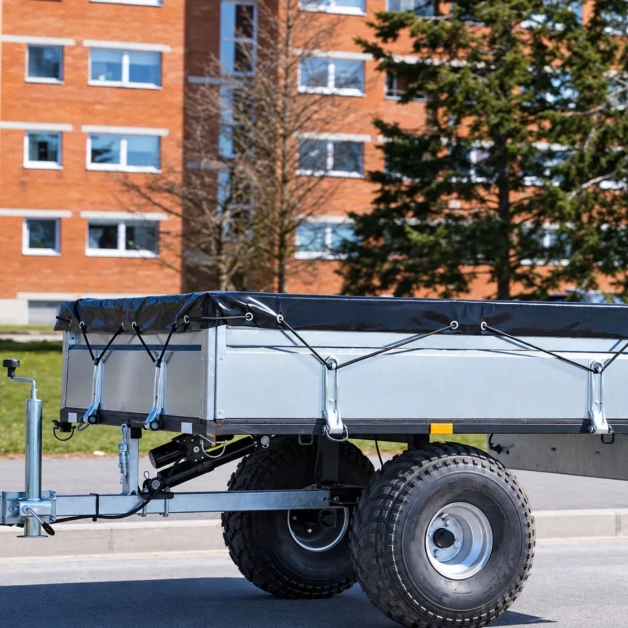

Road-approved quad trailer 500 kg Tilting box with removable side panels IB-165

A European-approved, robust and versatile trailer for ATVs

Thanks to its European R1a approval, this trailer stands out from classic off-road models exclusively intended for private use. It meets the requirements of its category for road use and is particularly interesting equipment for professionals who need to travel between multiple plots, agricultural buildings, or work sites.

With a payload capacity of 500 kg, a box measuring 1600 × 1200 mm, and a loading volume of 705 liters, it offers an excellent compromise between transport capacity, size, and maneuverability.

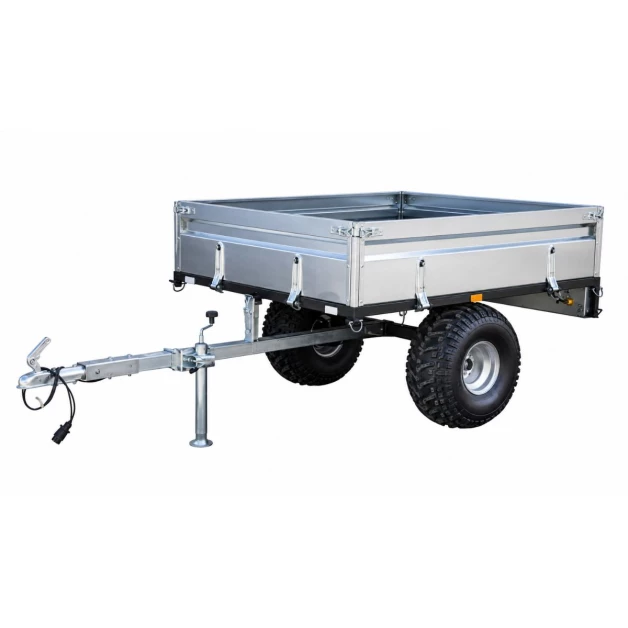

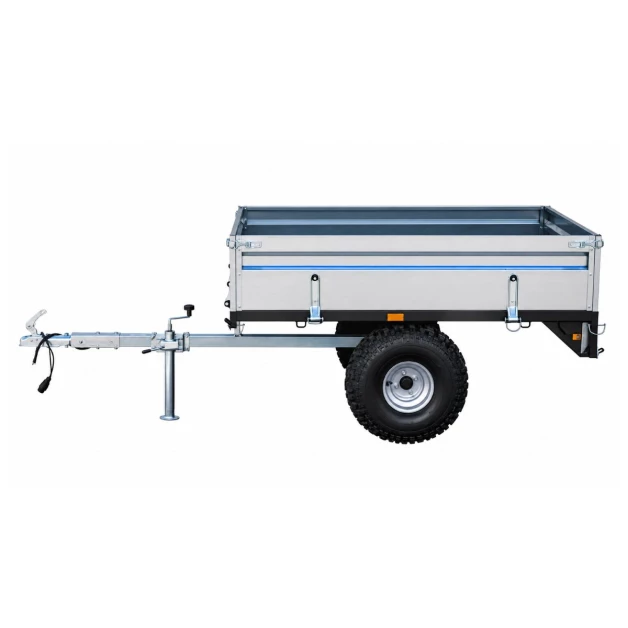

Its galvanized steel structure, large off-road wheels, tipping bed, and fully removable sides allow it to adapt to a multitude of tasks.

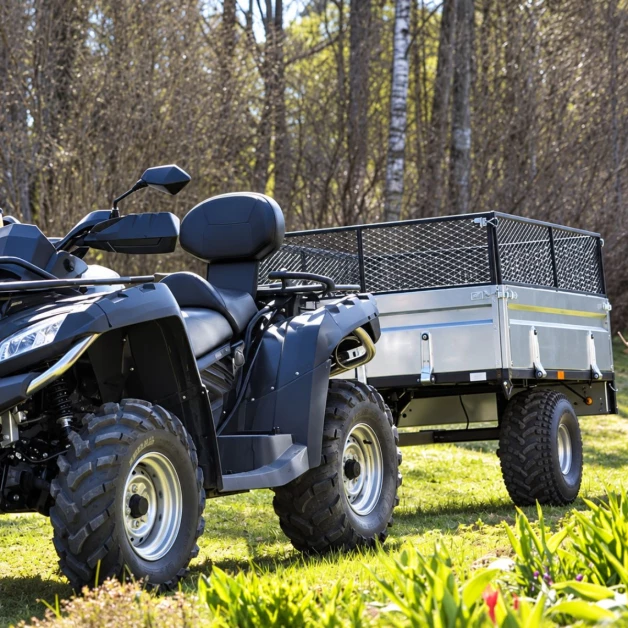

This agricultural trailer for ATVs can also accommodate various accessories, including mesh extensions, a PVC protective cover, or even an electric lifting kit, to meet the specific needs of each user.

The main advantages of this approved agricultural trailer

• European R1a approval: Trailer designed for road traffic, subject to compliance with applicable regulations.
• 500 kg payload: Suitable capacity for transporting wood, materials, and agricultural equipment.
• Tipping box: Facilitates unloading operations and reduces handling.
• Galvanized steel construction: Provides excellent protection against corrosion and outdoor conditions.
• Fully removable sides: Allow the trailer to be transformed into a loading platform.
• 22 × 12 - 8 off-road tires: Suitable for farm tracks, meadows, and uneven terrain.
• 360° rotating drawbar: Accompanies the movements of the towing vehicle on rough terrain.
• Tie-down rings: Allow securing goods with straps.
• Support leg: Facilitates parking as well as hitching and unhitching operations.
• Road equipment: Trailer equipped to meet the requirements of its approval.
• Available accessories: Mesh extensions, PVC tarp, electric lifting kit, and tipping assistance system.

An ATV trailer approved for road traffic in Europe

One of the main assets of this approved ATV trailer lies in its compliance with European regulations applicable to the R1a category.

Unlike trailers exclusively intended for off-road use, this model has been developed to also allow travel on public roads, when regulatory conditions are met.

This feature represents an advantage for farmers who wish to use their trailer both in the fields and for traveling between multiple properties or operation sites.

Equipment suitable for road traffic

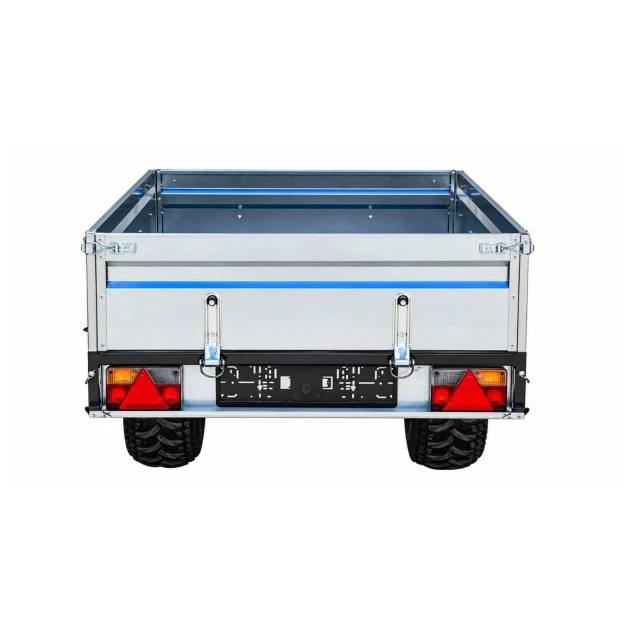

The trailer features signaling equipment including:

• Rear lights to ensure its visibility.
• Brake lights to signal braking phases.
• Indicators to show changes in direction.
• License plate lighting.
• 7-pin electrical socket for connection to the towing vehicle.
• Reflective devices contributing to the visibility of the whole.

It also benefits from European R1a approval and the necessary identification elements for compliance.

Important: European approval does not automatically guarantee authorization to be towed behind any quad, SSV, or tractor. Registration rules, speed limits, traction capacities, and road conditions must be verified according to the country of use, notably in Belgium and France.

A load capacity of 500 kg and a box of 705 liters

With its maximum payload of 500 kg, this trailer is a particularly practical transport tool for agricultural, forestry, and maintenance work.

Its loading box measures 1600 mm long, 1200 mm wide, and 348 mm high, offering a generous surface for transporting goods of various dimensions.

Its 705-liter volume allows for transporting a significant amount of materials while maintaining a compact size, suitable for traveling on paths and in narrow passages.

It is particularly suitable for the transport of:

• Firewood: Logs, firewood, split wood, and small loads of wood.
• Bulk materials: Soil, compost, potting soil, sand and other materials compatible with its payload.
• Agricultural equipment: Tools, accessories, crates, and operational equipment.
• Livestock supplies: Feed bags, fencing materials, buckets, and accessories.
• Green waste: Branches, leaves, cut grass, and maintenance residues.
• Construction materials: Tools, bags, and small site equipment.

Integrated tie-down rings allow for securely fastening the load with suitable straps to limit movement during transport.

A tipping trailer for quick and convenient unloading

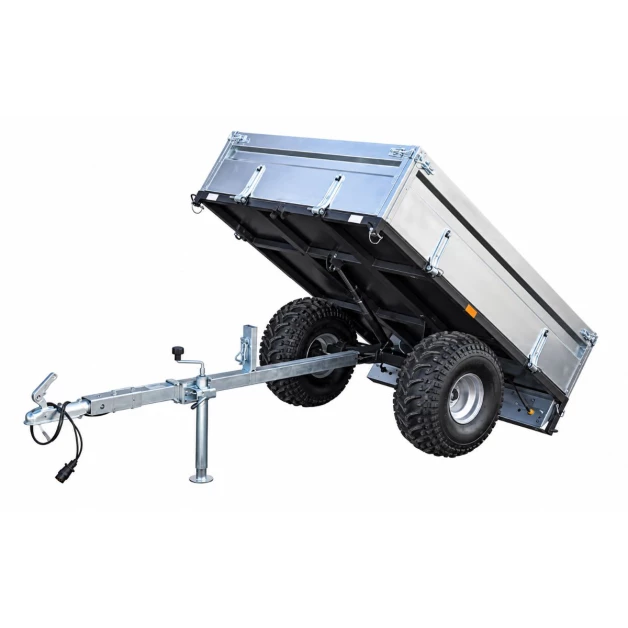

The tipping bed is one of the major advantages of this quad trailer.

It facilitates the unloading of goods without necessarily having to manually empty the entire bed.

This feature is particularly appreciated for transporting firewood, soil, plants, and other bulk materials.

The manual tipping offers a simple solution for occasional use, while different options can enhance user comfort.

An optional electric lifting kit available

For users who regularly perform unloading operations, this trailer can be equipped with an electrohydraulic lifting kit.

This system makes it easier to tip the bed using an electric control, thus reducing the physical effort needed to lift a heavy load.

It is a valuable piece of equipment for farmers, landscaping professionals, and users who frequently transport wood or materials.

A gas spring-assisted tipping system can also be considered depending on the available configurations.

Removable sideboards to convert the trailer into a flatbed

This agricultural quad trailer also stands out for its modularity.

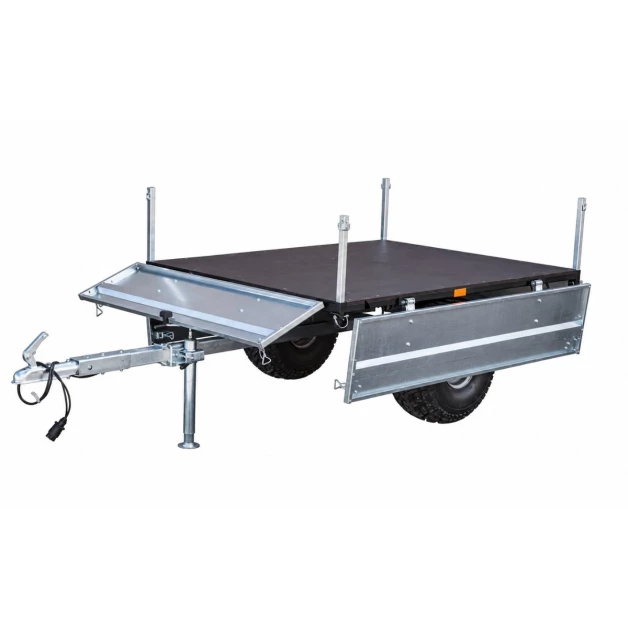

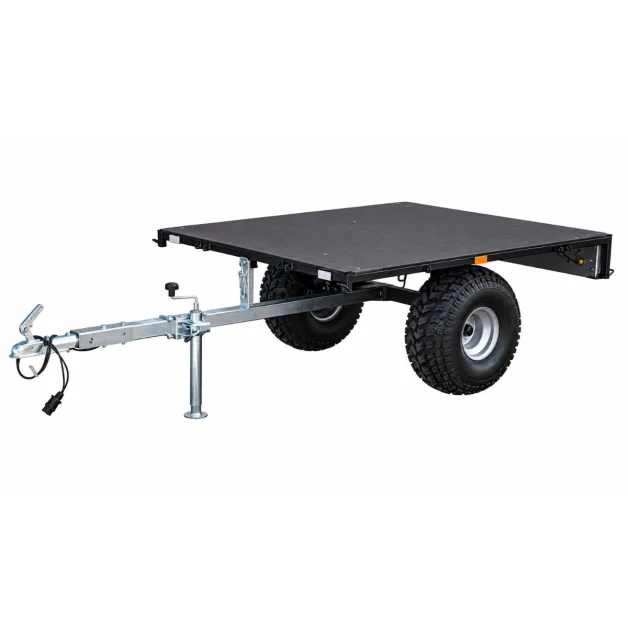

Its front, rear, and side panels can be dismantled to transform the bed into a true flatbed.

This configuration is particularly useful for loading bulky equipment or goods that require side access.

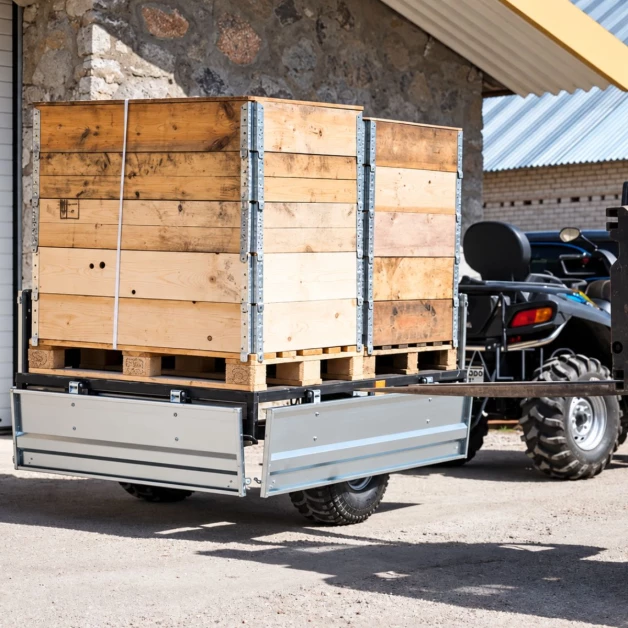

The transformation into a flatbed allows for the transport of large crates, agricultural equipment, tools, or various construction elements, all while adhering to permissible dimensions and loads.

The bed base is made of moisture-resistant plywood, providing a loading surface suitable for professional use.

Thanks to this design, the trailer can be used for a wide range of tasks without needing multiple transport equipment.

A durable design for agricultural and forestry work

The trailer is designed to operate in demanding conditions, particularly on farms, forest properties, and rough terrains.

Its galvanized steel structure helps protect metal parts from corrosion, while elements with a powder-coated finish offer additional protection against external aggressions.

This construction allows it to withstand conditions encountered during outdoor work: humidity, dust, soil splashes, and regular travel over uneven paths.

Large all-terrain wheels for better mobility

The 22 × 12 - 8 tires provide a large contact surface and are suitable for movement on various types of grounds.

They allow for navigation on:

• Agricultural paths and operational tracks.
• Meadows and grassy terrains.
• Forest paths and unpaved tracks.
• Soft terrain within adhesion and load limits.
• Irregular surfaces requiring good crossing ability.

The 360° rotating drawbar accompanies the relative movements of the trailer and the towing vehicle, a useful feature when traveling on uneven terrains.

A trailer suitable for quads, SSVs, UTVs, and small tractors

Thanks to its versatile design, this trailer can be hitched to various agricultural or utility vehicles equipped with a compatible towing system.

It is particularly suitable for:

• Agricultural quads: For daily travel and transport work on a farm.
• SSVs and UTVs: For maintenance, handling, and equipment transport tasks.
• Small tractors: For transport operations on farms and properties. Utility vehicles compatible: Subject to compliance with technical specifications and homologation conditions. Its 50 mm ball hitch allows connection to vehicles equipped with a corresponding device. Before use, it is essential to check the vehicle's maximum towing capacity, the permissible load on the hitch, and the compatibility of electrical equipment. The different uses of this quad trailer For farms and livestock On a farm, a quad trailer is particularly useful for carrying out small daily transports. It can be used to move feed bags, tools, fencing material, watering accessories, or maintenance equipment. Its compact format allows access to places where using a tractor with a large trailer would be less practical. For farmers, it offers an interesting solution for quickly transporting supplies between several buildings or plots. For transporting firewood This forestry quad trailer is suitable for preparing and transporting firewood. It allows moving logs, billets, and split wood from a cutting or storage area to a building or shelter. Adding mesh extensions improves its capacity to contain bulky loads, while the tipping system facilitates unloading operations. Thus, it is a practical piece of equipment for forest owners and individuals with large properties. For maintaining green spaces Gardening professionals and maintenance services can use this trailer to transport equipment, plants, green waste, or supplies. Its tipping body and removable sides facilitate loading and unloading operations. For construction and renovation work Thanks to its load capacity and the option to remove its sides, this trailer can also be used to transport small construction equipment, bags of materials, or tools. Its format makes it particularly interesting for accessing areas that are difficult to reach with larger vehicles. Options and compatible accessories This quad trailer can be complemented with various equipment designed to enhance its transport capacity, versatility, or ease of use. 1. Electric lift kit for tipping body The electrohydraulic lift kit is designed to facilitate unloading operations. It allows the body to be tipped using an electric system, reducing the effort required when the trailer is carrying heavy materials. This option is particularly interesting for users who frequently perform unloading operations. Main advantages: - Assisted tipping: Allows lifting the body without having to do all the effort manually. - Work comfort: Reduces the difficulty of unloading operations. - Time-saving: Facilitates repeated interventions. - Professional use: Particularly interesting for wood, earth, and bulk materials. This system is available separately and must be installed in accordance with the technical specifications provided for the trailer. 2. Mesh extensions to increase loading volume Mesh extensions for quad trailers allow increasing the useful height of the body sides. With an additional height of about 310 mm, they offer more volume for transporting bulky but relatively lightweight goods. They are particularly suitable for transporting: - Firewood and split logs. - Branches and green waste. - Leaves and plants. - Lightweight and bulky materials requiring higher walls. Their mesh metal structure keeps the load inside the body while maintaining good visibility. Attention: Installing extensions increases the available volume but does not change the maximum authorized payload of 500 kg. 3. PVC protective cover The PVC protective tarp is an interesting accessory for transporting goods that require protection from the weather. It allows you to cover the load bed and limit the exposure of the cargo to rain, mud splashes, and dirt. This cover is particularly useful for transporting tools, packaged feed bags, or agricultural supplies. It also helps to better contain certain light loads during transport, without replacing the mandatory or necessary securing devices. ### Technical Characteristics of the 500 kg Approved Quad Trailer | Characteristics | Technical Data | |------------------------------|--------------------------------------------| | Trailer Type | Trailer for quad, SSV, UTV, and small tractor | | Approval | European R1a | | Compliance | CE | | Load Capacity | 500 kg | | Loading Volume | 705 liters | | Total Length | 2743 mm | | Total Width | 1330 mm | | Total Height | 1008 mm | | Load Bed Length | 1600 mm | | Load Bed Width | 1200 mm | | Load Bed Height | 348 mm | | Main Material | Steel | | Finish | Galvanization and powder coating | | Flooring | Moisture-resistant plywood | | Tires | 22 × 12 - 8 | | Tire Type | All-terrain | | Number of Wheels | 2 | | Tipping Function | Yes | | Removable Sideboards | Yes | | Rotating Drawbar | 360° | | Hitch | 50 mm ball | | Lashing Rings | Yes | | Support Leg | Yes | | Road Equipment | Yes | | Options | Electric lifting kit, mesh side extensions, PVC cover, tipping assistance | ### Why Choose This Trailer at Terwagne-élevage? At Terwagne-élevage, we offer equipment designed to facilitate the daily work of farmers, breeders, and property maintenance professionals. This European-approved quad trailer meets the needs of users looking for robust, practical, and versatile equipment capable of supporting both agricultural work and transport and maintenance operations. With its 500 kg load capacity, tipping bed, and numerous equipment options, it is a worthwhile investment for professionals looking to optimize their movements and handling operations. Based in Ciney, Belgium, our company leverages its experience in agricultural and livestock equipment to advise you on selecting equipment that suits your needs. Our team remains available to inform you about this trailer, its accessories, and its possible uses. ### Frequently Asked Questions About This Approved Quad Trailer **Can this quad trailer be used on the road in Belgium and France?** This trailer has European R1a approval. It is designed for road use under the conditions provided by this approval. Its effective use depends, however, on administrative formalities, the characteristics of the towing vehicle, and the regulations in force in the country of use. **What is the load capacity of this trailer?** The trailer can transport up to 500 kg of load, in compliance with the technical limits of the trailer and the towing vehicle. **Can firewood be transported?** Yes, it is perfectly suited for transporting firewood, logs, and billets. Mesh side extensions are available as an option to increase the loading volume. **Does the trailer have a tipping bed?** Yes, This trailer is equipped with a manually tilting box. An electric lifting kit can be added to facilitate unloading operations.

  Can the side panels be removed?

  Yes, the side panels are removable to allow the trailer to be used as a loading platform.

  Can this trailer be used with an SSV or UTV?

  Yes, provided that the vehicle has a compatible hitch system and sufficient towing capacity.

  Are the extensions and the cover included?

  No, the mesh extensions, PVC cover, and electric lifting kit are offered separately.
