Gallagher solar station for electric fencing with anti-theft

The range includes four models to cover different needs

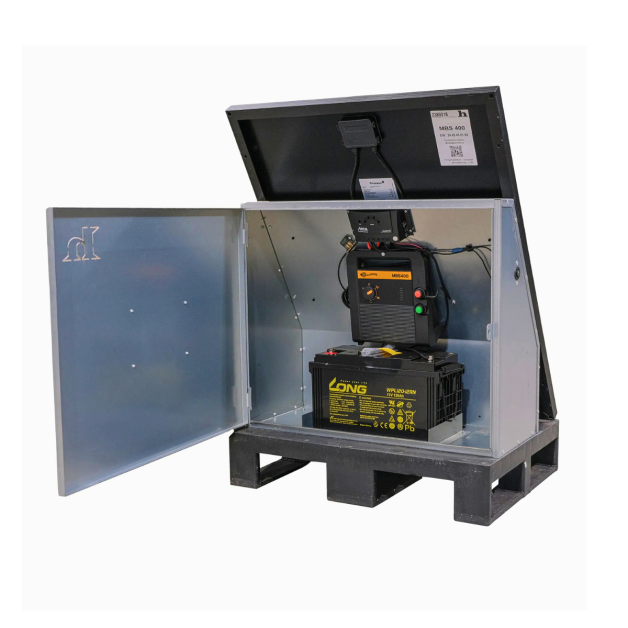

• MBS400: compact solution for small and medium fences
• MBS1000i: connected station for fences up to 11 km
• MBS2000i: intermediate power for large installations
• MBS3000i: high-power solar station for long fences and dense vegetation

Each station is delivered ready to use, with all necessary components for installation.

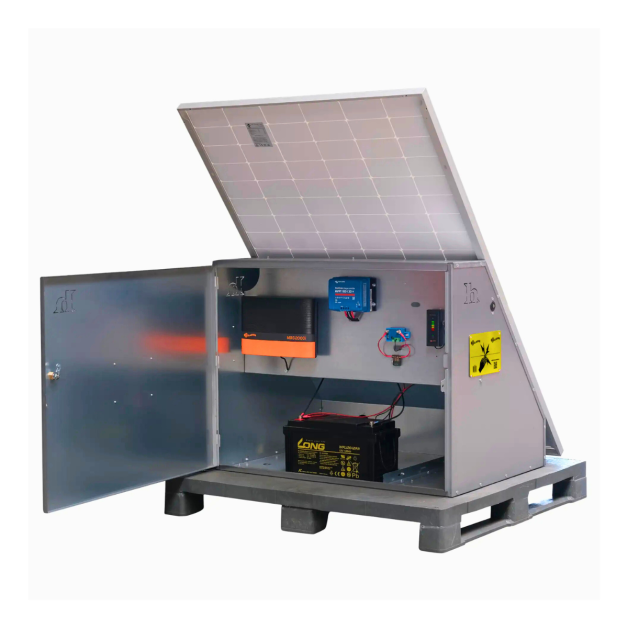

A complete and autonomous solar station

Gallagher MBS solar stations integrate all the necessary elements to power an electric fence:

✔ high-performance Gallagher energizer
✔ high-power solar panel
✔ high-capacity AGM battery
✔ intelligent charge controller
✔ grounding system
✔ anti-tamper metal enclosure
✔ robust transport pallet

This design ensures a continuous power supply to the fence, even during periods of low sunlight.

The system is designed to operate completely autonomously, without requiring a connection to the electrical grid.

Integrated energizer: Gallagher power and reliability

Each solar station is equipped with a Gallagher energizer from the MBS series, known for its reliability and high performance.

These energizers deliver a powerful pulse that maintains an effective voltage on the fence, even in the presence of vegetation.

Depending on the chosen model, the power varies from 4 joules to 21 joules, allowing for the securing of installations of different sizes.

The models MBS1000i, MBS2000i, and MBS3000i are part of the Gallagher i Series system, which allows intelligent fence management via the Gallagher app.

Intelligent power adaptation

The energizers of the i Series automatically adjust their power based on:

• The length of the fence
• The load on the line
• The vegetation
• Potential losses

This intelligent management allows for:

• Maximum efficiency
• Optimized energy consumption
• Stable voltage on the fence

The system can also record the fence voltage history, facilitating diagnostics and maintenance.

Control and monitoring via mobile app

The stations MBS1000i, MBS2000i, and MBS3000i can be controlled via the Gallagher Fence App.

With this app, it is possible to:

• Monitor the fence voltage
• View performance history
• Control different fence zones
• Adjust operating parameters

The integrated Victron charge controller also allows tracking of the solar panel and battery performance.

The stations operate via Bluetooth and can be connected to an optional mobile WiFi router for remote control.

Enhanced protection and security

Gallagher solar stations are designed to withstand the most demanding conditions.

The system is installed in an anti-theft metal enclosure, mounted on a robust plastic pallet, which allows for:

• Easy transport to pastures
• Protection against vandalism
• Stable installation on the field

To further deter theft, the metal enclosure itself is electrified, effectively protecting the equipment against intrusions.

Powerful solar power supply

Gallagher solar stations use high-power solar panels, ensuring efficient battery recharging.

Depending on the models:

• 150 W for the MBS400
• 370 W for higher models

This power ensures optimal autonomy year-round, even in winter.

The integrated AGM batteries also offer a large storage capacity to keep the fence active during periods of low sunlight.

Comparison of Gallagher MBS solar stations

What are Gallagher solar stations used for?

The MBS solar stations are particularly suited for:

• Remote pastures without electricity
• Large agricultural operations
• Extensive grazing areas
• Protection against game
• Long fences with vegetation
• Permanent installations

They are ideal for containing:

• Cattle
• Horses
• Sheep
• Goats
• Game

Simple and quick installation

Each station is delivered ready to use.

It includes:

• The grounding system
• The connection cables
• The solar panel
• The batteries
• The Gallagher energizer

Just position the station in a well-exposed area to the sun, connect the fence and the ground, and the system is operational.

Why choose a Gallagher solar station?

Gallagher is one of the world leaders in electric fencing.

The MBS solar stations offer:

✔ complete energy autonomy
✔ high power for long fences
✔ intelligent energy management technology
✔ monitoring via mobile app
✔ robustness suited to agricultural conditions

They represent today the most reliable solution for powering an electric fence in isolated areas.
