Double anchor insulator for Gallagher handle – Pack of 5 electric fence

What is the purpose of a double handle insulator?

On an electric fence, it is often necessary to provide a passage to enter a meadow, access a paddock, or allow a vehicle to pass through.

This passage is generally created using one or more insulating handles connected to the fence conductors.

The double handle insulator serves as an anchor point for these handles.

It allows for the creation of a solid attachment zone at the post while preventing the electrified elements from coming into direct contact with it.

Its two-point attachment design is particularly practical for passages located between two sections of the fence.

Why choose a double model?

A single insulator has only one attachment point.

The double Gallagher model, on the other hand, provides two anchor points on a single support.

This design is particularly useful when a post is at the junction of two fence sections or when two handles need to be attached at the same location.

It allows for a neater installation and avoids unnecessarily multiplying insulators on the post.

The double insulator thus helps to correctly organize connections at the passages.

A robust insulator for frequently used passages

Fence passages are particularly stressed areas.

With each opening or closing, the handle is manipulated, and tension may be applied to its anchor point.

It is, therefore, important to use an insulator specifically designed to withstand these constraints.

Gallagher developed this anchor insulator with a reinforced design and quality materials to ensure good mechanical resistance under normal use.

It is suitable for passages regularly used in meadows and agricultural operations.

Two versions depending on your type of post

The choice of model mainly depends on the support on which the insulator needs to be installed.

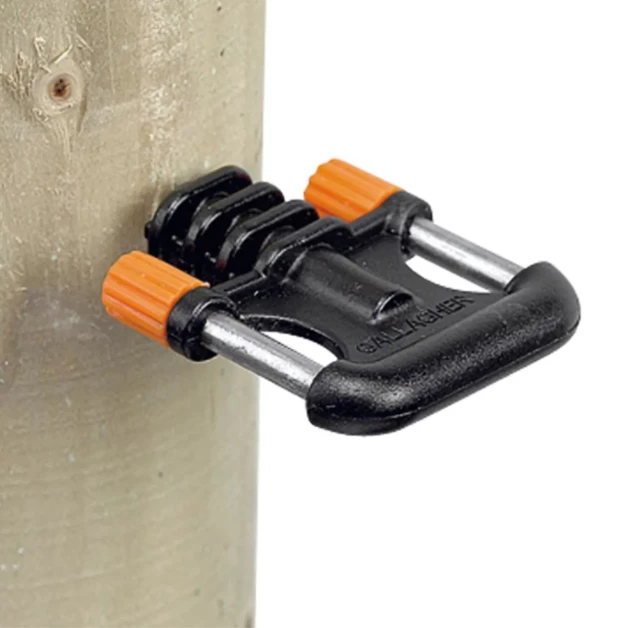

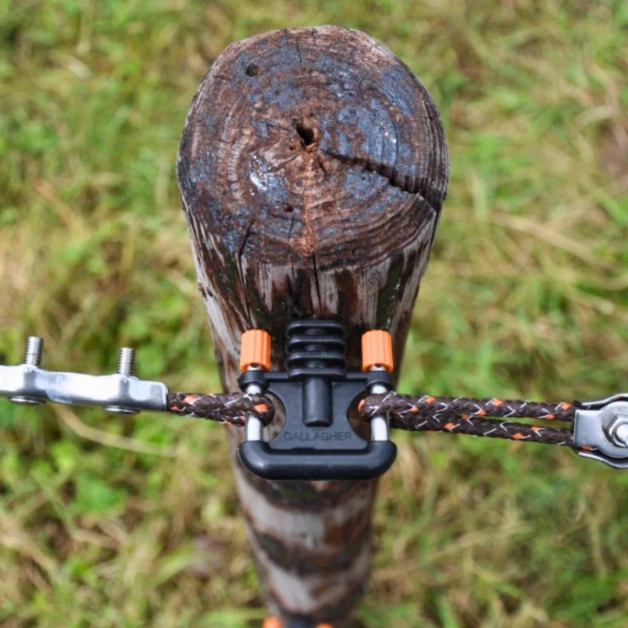

1. Gallagher double handle screw-in insulator – For wooden posts

This version is specifically designed for attachment to wooden posts. It allows for the creation of a solid anchor point for the fence handles.

It is also designed to allow the connection of a suitable cable of 1.6 or 2.5 mm and can be used with 2.5 mm High Tensile wire.

Choose this if your fence is installed on stakes or wooden posts.

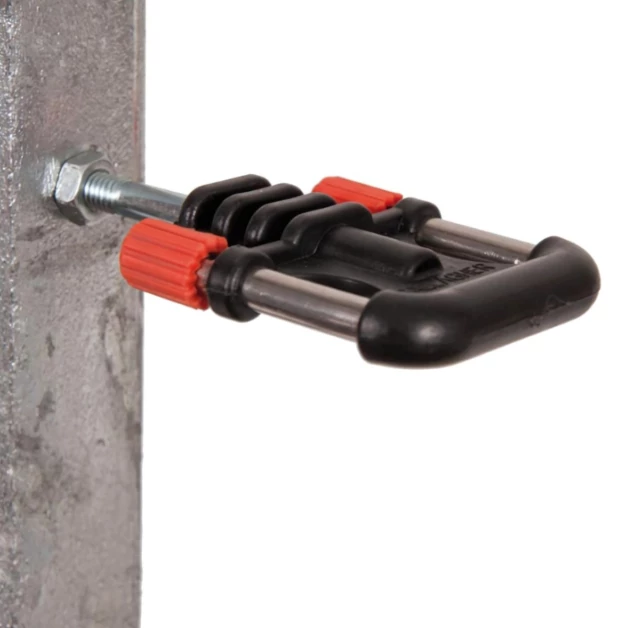

2. Gallagher M6 double handle insulator – For metal or concrete posts

This version features an M6 threaded attachment and is intended for metal or concrete posts, with an appropriate attachment system.

It has two reinforced anchor points and also allows for the connection of suitable cables up to 2.5 mm.

Choose this if your installation uses metal or concrete posts.

Why is it important to use an insulator at the handles?

An electric fence handle should be easy to attach and detach, but its anchor point must also ensure proper insulation.

A poor attachment system can cause undesirable contact between the conductive elements and the post or another part of the installation.

This can lead to electrical losses and reduce the effectiveness of the fence.

The Gallagher insulator helps keep the attachment points away from the support and limits the risk of current leakage towards it.

It thus contributes to the proper functioning of the fence, especially at the passages.

Possibility of electrical connection

In addition to their anchoring function, these Gallagher insulators offer possibilities for connection to suitable electrical cables.

This can be particularly useful when continuity of power supply needs to be ensured at a passage.

Indeed, opening a handle can interrupt the electrical connection if the installation was not designed to maintain power to the other sections.

The possibility of connecting a suitable cable allows for a more complete and better-organized installation.

The connection must be made following the fence configuration and the manufacturer's recommendations.

For which electric fences?

The Gallagher double handle insulator is a general electric fence accessory.

It is particularly suitable for installations intended for horses and ponies, cattle, sheep, goats, and other livestock.

It can be used on fences in meadows, pastures, paddocks, and more.

It is suitable for both individuals and farmers or professionals.

How to install the double handle insulator?

The installation depends on the chosen version.

For the screw-in model, select a sufficiently sturdy wooden post and attach the insulator at the desired location.

For the M6 model, use a suitable fixture for the metal or concrete post.

In both cases, the insulator must be properly secured to withstand the tension exerted during the opening and closing of the handles.

Also, ensure that the attachment points are positioned to allow easy handling of the handles, without unwanted contact with the post.

Always turn off the energizer before working on the connections.

Technical characteristics

Advantages

• Two anchor points for electric fence handles.
• Robust design suitable for frequently used passages.
• Allows for neat organization of fence openings.
• Ensures insulation between attachment points and the post.
• Possibility of connecting a suitable cable.
• Compatible with High Tensile wire up to 2.5 mm.
• Two fixation systems depending on the support.
• M6 model in UV-stabilized plastic.
• Suitable for fences of individuals and professionals.
• Convenient packaging of 5 pieces.

Terwagne's advice

To create an electric fence passage, it is important to choose an anchor insulator that is robust enough to withstand repeated handling of the handles.

The double Gallagher model is a particularly interesting solution since it allows for two attachment points on the same post.

The choice between the two versions depends on the material of your post:

• For a wooden post, choose the screw-in version.
• For a metal or concrete post, choose the M6 version, with the corresponding fixture.

Also consider the electrical continuity of your installation: when a passage is opened, some sections of the fence may no longer be powered if no additional connection has been planned.
