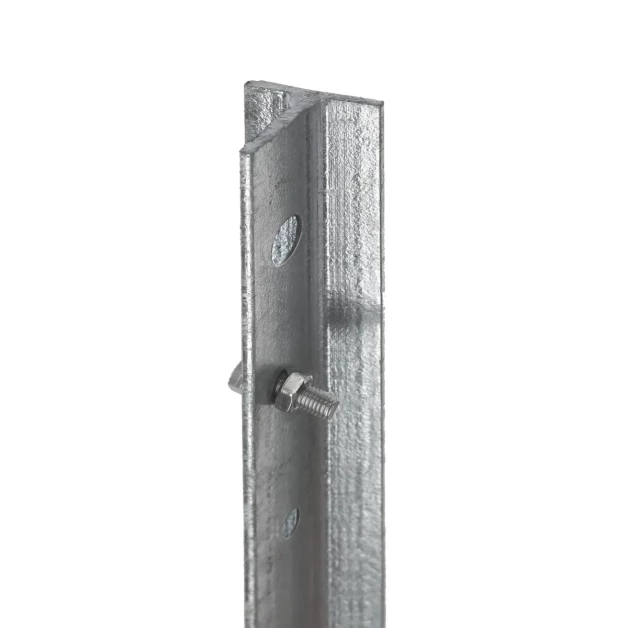

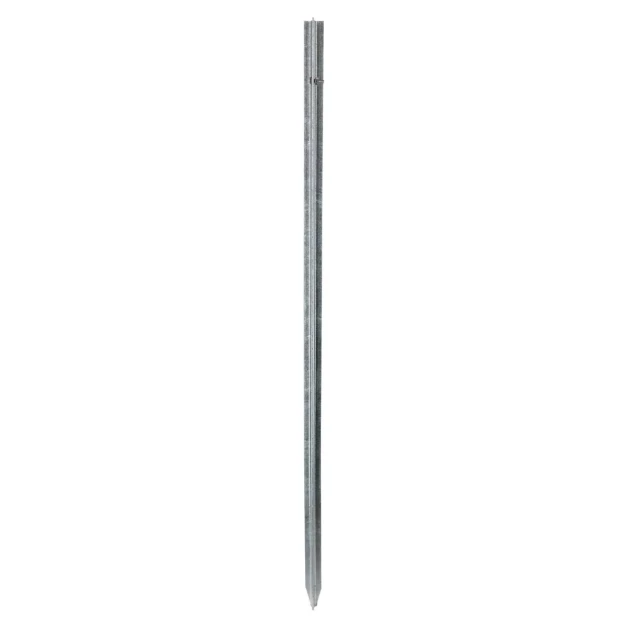

Kerbl 1.10 m ground rod Grounding stake for electric fence energizer

Why is grounding so important?

An electric fence operates through an electrical circuit.

The energizer sends pulses into the wire, cord, or tape of the fence.

When an animal touches the conductor while in contact with the ground, the pulse can travel through its body and then return to the energizer via the earth.

The ground stake precisely enables this connection between the ground and the device.

Without proper grounding, the circuit functions less efficiently.

Result: even if the energizer is powerful and the conductors are of high quality, the pulse felt by the animal may be insufficient.

This is why grounding is one of the most important elements of an electric fence installation.

Why choose a 1.10 m ground stake over a shorter model?

This is one of the main advantages of this Kerbl model.

A ground stake should not simply be planted in the soil: it must be able to establish an effective electrical contact with the surrounding earth.

However, not all layers of the soil offer the same conditions.

1. Reach deeper, moister earth

In summer, the surface of the ground can become very dry.

Dry earth generally conducts electricity less well than moist earth.

A too-short stake remains primarily in contact with this superficial layer, which can limit the quality of the grounding.

With its 1.10 m length, this stake can be driven deeper and reach soil layers that are likely to retain more moisture.

This depth can improve the quality of the electrical contact, especially during dry periods.

2. Increase the contact surface with the ground

The longer and more properly driven a stake is, the more its metal surface can be in contact with the earth.

This additional contact surface helps reduce the resistance of the grounding system, depending on the nature and moisture of the soil.

A 1.10 m stake, therefore, offers significant advantages over a short superficial stake.

3. Improve the return of electrical pulses

An electric fence must be able to transmit a pulse but also allow its return to the energizer.

If the grounding presents too much resistance, the efficiency of the fence can decrease.

By promoting better contact with the ground, a longer stake helps improve current return conditions.

Proper grounding thus allows more effective exploitation of the energizer's performance.

4. Limit problems related to seasonal variations

A terrain can be moist in autumn and winter, then become very dry during summer.

These variations can influence the performance of the grounding.

Thanks to its length, the 1.10 m stake allows for deeper contact with the ground and reduces dependence on surface conditions alone.

However, be cautious: in particularly dry, sandy, or rocky soil, length alone does not guarantee sufficient grounding.

A particularly interesting ground stake for powerful energizers

The more energetically an energizer delivers pulses, the more important it is to ensure a properly sized grounding.

Installing a powerful device with insufficient grounding can significantly limit the installation's performance.

This is especially true for fences intended for large animals or protection against game.

The Kerbl 1.10 m stake provides a good basis for effective grounding.

Depending on the energizer's power and the terrain conditions, several ground stakes may be necessary.

It is therefore important to follow the manufacturer's recommendations for the device.

A suitable accessory for wild boar deterrent fences

Grounding deserves special attention when installing an electric fence intended to deter wild boars.

The wild boar is a robust animal, whose fur can make electrical contact more difficult.

To achieve a sufficiently deterrent fence, it is necessary to combine a suitable energizer with quality conductors and good grounding.

The Kerbl 1.10 m ground stake contributes to this installation by ensuring the connection between the energizer and the ground.

It can be used for wild boar deterrent fences protecting gardens, vegetable patches, orchards, meadows, or crops.

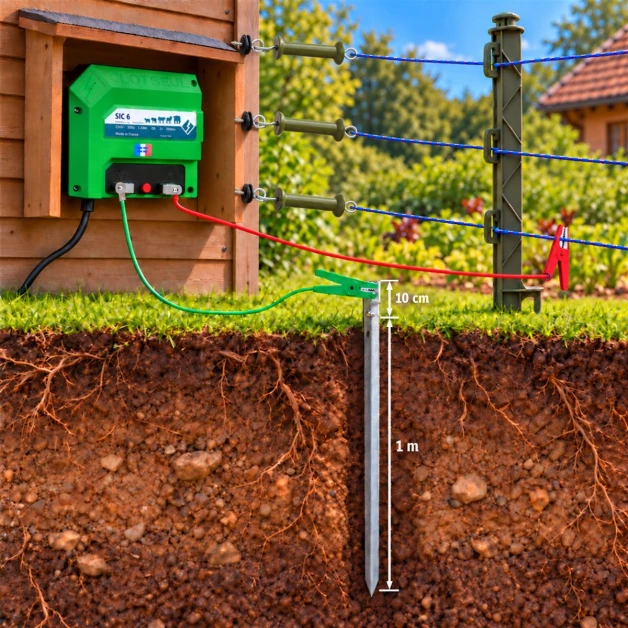

A powerful electric fence energizer does not compensate for a poor ground connection. Both elements must be properly paired. ## Where to install the ground rod? To achieve the best possible performance, we recommend installing the ground rod: - in naturally moist soil, when possible; - in an area where it can be driven deep enough; - away from other grounding installations, in accordance with the energizer's safety instructions; - in a location allowing reliable connection to the grounding cable. Avoid very dry soils, gravel-filled areas, and places where the rod cannot be properly driven if possible. The quality of the soil plays as important a role as the length of the rod. ## Should one or multiple ground rods be installed? This primarily depends on the power of the energizer, the resistance of the terrain, and the manufacturer's recommendations. For some small installations, a properly installed rod may be sufficient. However, more powerful energizers may require multiple ground rods to achieve sufficiently low resistance. When multiple rods are needed, they should be electrically connected with a suitable cable. A spacing of about 3 meters between rods is commonly recommended to limit interactions between their contact zones with the soil. It is always better to check the quality of the ground connection rather than assume that a single rod is enough. ## How to install the Kerbl ground rod? 1. Choose a location with good natural moisture. 2. Drive the rod into the ground as deeply as possible, while maintaining necessary access for connection. 3. Connect the rod to the energizer's ground terminal using a suitable grounding cable. 4. Ensure the connection is securely tightened and that the electrical contact is of good quality. 5. If necessary, install additional rods according to the energizer's recommendations. 6. Check the system's operation using an appropriate measuring device. The fence's grounding must remain distinct from domestic grounding systems and comply with the safety distances specified by the manufacturer and applicable standards. ## Technical Specifications Brand: Kerbl Product: Ground rod for electric fence Marketed length: 1.10 m Function: Grounding of the energizer Use: Electric fences Installation: Driven into the ground Applications: Farming, meadows, pastures, paddocks, gardens, crops, and protective fences Users: Individuals, farmers, agriculturists, and professionals ## Advantages of the Kerbl 1.10 m ground rod - Large length of 1.10 m for deep anchoring. - Allows reaching potentially more humid soil layers. - Increases the contact surface with the soil compared to a short rod of the same profile. - Helps improve the return of electrical pulses. - Aids in properly exploiting the energizer's performance. - Particularly beneficial for powerful electric fences. - Suitable for farming installations and protective fences. - Can be combined with other rods to enhance grounding. - Kerbl product. ## Terwagne Advice Never underestimate the importance of your electric fence's grounding. When a fence lacks power, it is often assumed that the energizer is too weak. However, in many cases, the problem stems from insufficient grounding. That's why we recommend opting for a rod that is long enough, like this 1.10 m Kerbl model, rather than a small superficial rod. The advantage is simple: the deeper the rod goes, the more likely it is to reach soil retaining moisture favorable for current flow. This characteristic is particularly important in summer when the first few centimeters of soil become dry. For powerful energizers, especially those used for wild boar fences, we recommend checking if multiple rods are necessary. Good grounding is essential for achieving a truly effective electric fence.
